The Ultra Pulse10600nm CO₂ fractional laser machine is designed for professional medical grade purpose.
It is used most advanced technology named Ultra trace(Super Pluse) fractional CO₂ laser.

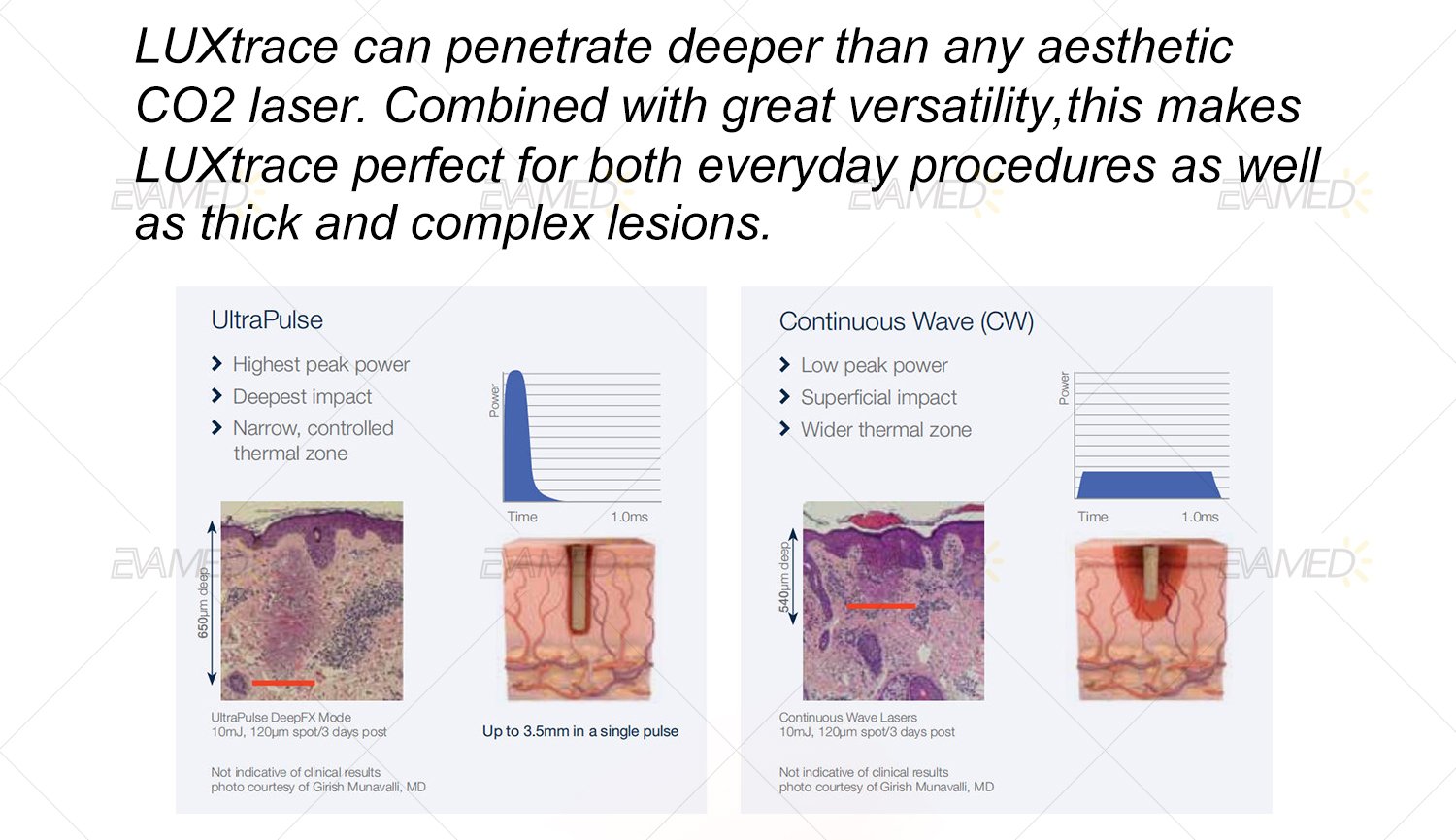

LUXtrace can penetrate deeper than any aestheticCO2 laser. Combined with great versatility,this makesLUXtrace perfect for both everyday procedures as wellas thick and complex lesions.
It has Frac Scan mode,normal model,super pulse mode,and Frac trace roller mode.
HB teatment way is optional
Android Al System
Metal RF 70W Big Power
15.6 Inch 4K Android Screen
Real Ablative Treatment Co2 RF Laser
Digital Fractional Scanner Handepiece
The wavelength of CO2 laser is 10.6 μ m, which can be fully absorbed by human biology tissue (all the skin areavailable). The sealed-off fractional CO2 laser, whose output laser-light will be transferred by articulated arm, which has better sense of direction and higher energy density.
The CO2 laser operates in the invisible infrared waveband, and an aiming beam is required to see where the treatment beam will impact tissue more recently from a visible red diode laser. When the laser beam go through the focus lens, the produced heat will gasify the target tissue.

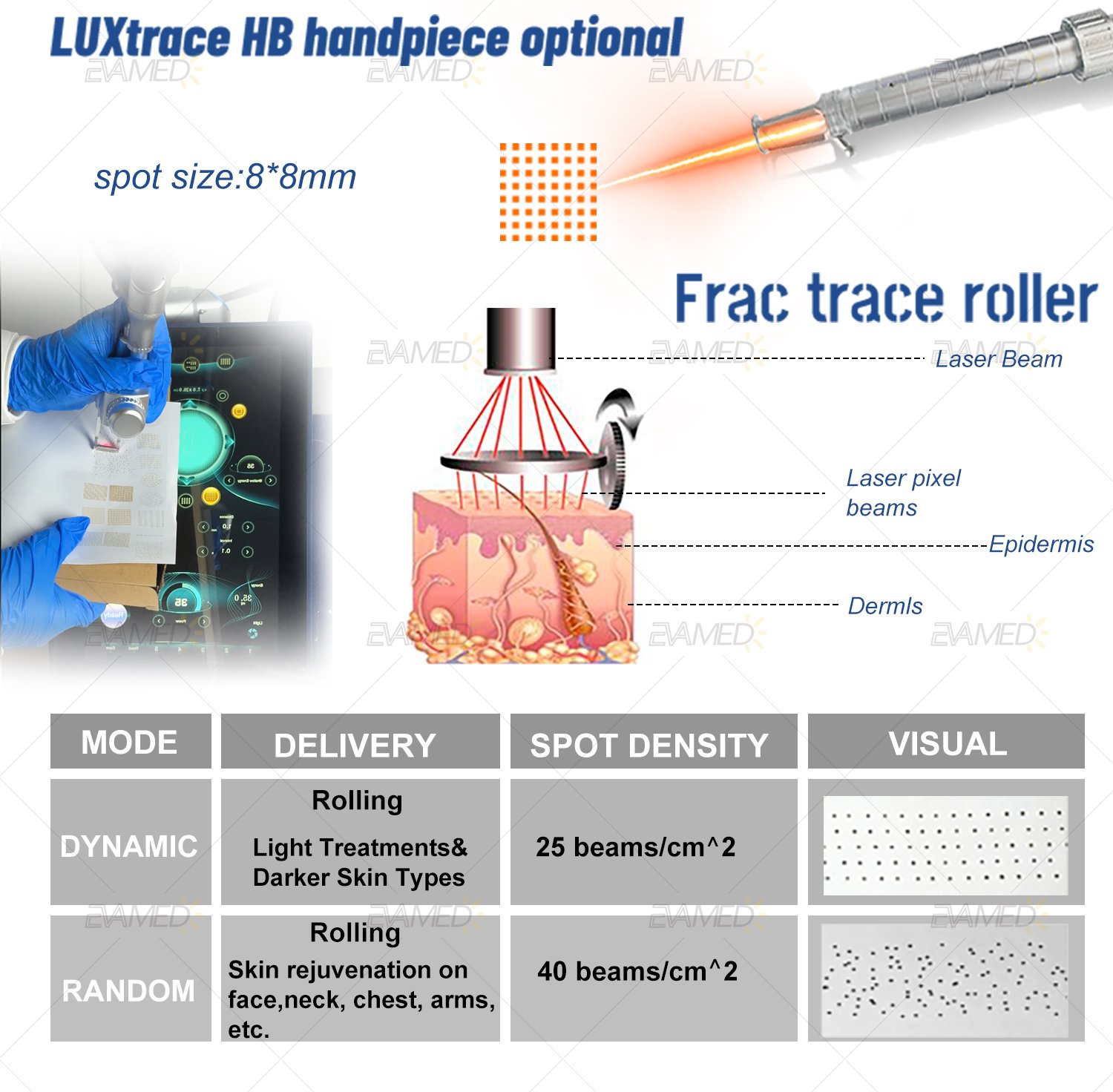

With fractional laser resurfacing the laser beam is broken up or fractionated linto many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact.
These small areas of untreated skin promote a much more rapid recovery land healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.
| Wavelength | 10,600 nm | |||||||||
| Laser Type | UltraPulse and CW | |||||||||
| Fractional shot mode | Superficial exfoliation and deep repair | |||||||||
| Power to Tissue | 70W | |||||||||
| Peak Power | 240W | |||||||||
| Spot Size | Fractional Scan mode 0.15mm -0.2mm 2.0 mm Focusing Mode | |||||||||
| Shot Depth in Skin | Max3mm | |||||||||
| Scan Size | Upto 20×20 mm | |||||||||
| Pulse Duration | 20μs-9.9ms | |||||||||
| Shot Speed | 300 shots/s | |||||||||
| Density per Scan | fractional:1-82%,full ablative:>100% | |||||||||

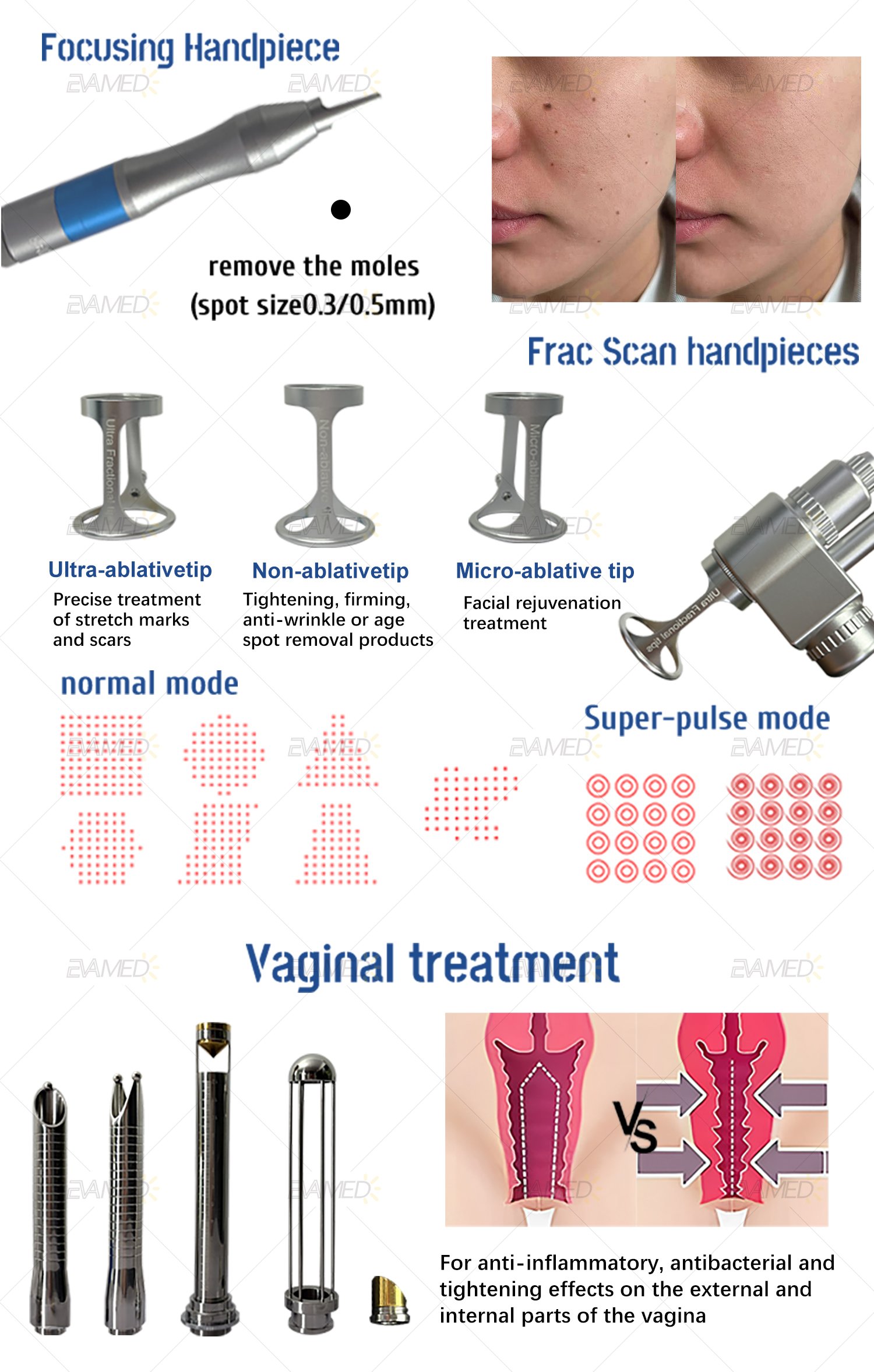

| Standard Handpiece | Frac Scan handpieces:3;vaginal handpiece:3;Focusing Handpiece:1 | |||||||||
| Optional Handpiece | Frac trace roller:1 with CW;Ultratrace HBhandpiece:1 | |||||||||
| Aiming Beam | 5 mW red diode laser,635 nm, adjustable intensity | |||||||||

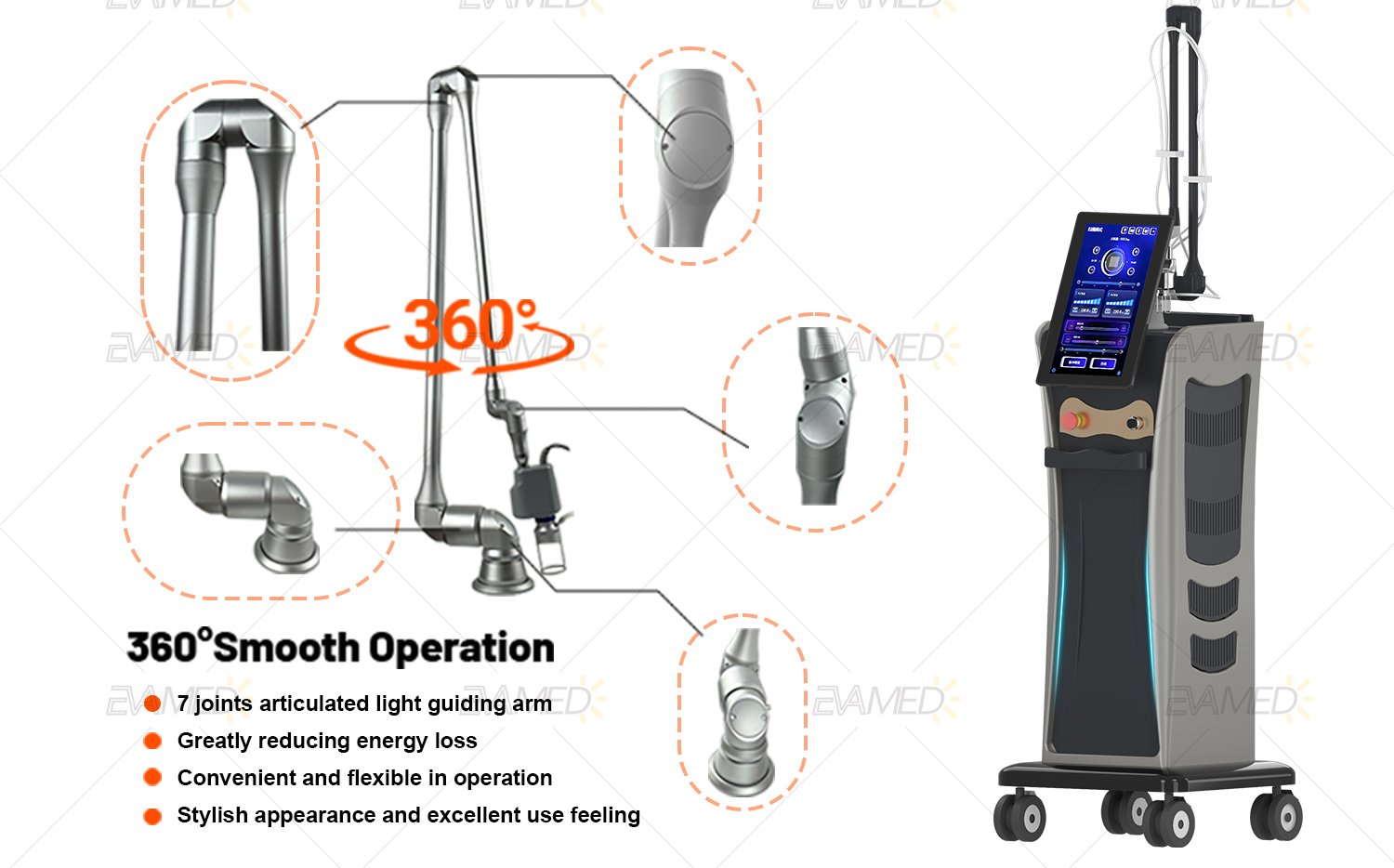

| Beam Delivery | Articulated arm 127cm,360 rotation,7 jont | |||||||||
| Cooling | Self-contained,closed cycle | |||||||||
| Warranty and Coverage | 1 Year standard | |||||||||
| Platform Specifications | ||||||||||
| Electrical | 100-240VAC,20Amax.,50/60Hz | |||||||||
| Weight | 78.5Kg | |||||||||
| Dimensions(WxDxH) | 75x58x151cm | |||||||||
